MORELS

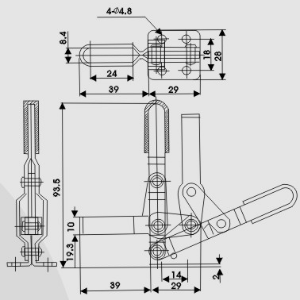

TT-101-B TT-102-B
Uertical Type 垂直式
|
自重〈WEIGHT〉：TT-101-B 135g、TT-102-B 115g |
|
挾持力〈HOLDING CAPACITY〉：100kg
|
| 配件型號〈SPINDLE SUPPLIED〉：TT-FC-14134 |
|
壓把移動〈BAR OPENS〉：90°
|
|
把手移動〈HANDLE OPENS〉：65° |
單位：公製
UNIT：m.m.
|
型 號
(MODEL) |
規則(DESCRIPTION) |
|
TT-101-B |
"U"型壓把、側座、直手把
U-BAR,SIDE MOUNTED,STRAIGHT HANDLE |
|
TT-102-B |
"U"型壓把、法蘭座、直手把
U-BAR,FLANGED BASE,STRAIGHT
HANDLE |
MORELS

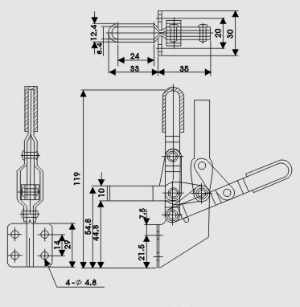

TT-101-D/TT-101-DI AND TT-101-DL/TT-101-E/TT-101-EI
|
自重〈WEIGHT〉：TT-101-D /
TT-101-DI 330g
TT-101-E / TT-101-EI / TT-101-DL 360g |
|
挾持力〈HOLDING CAPACITY〉：180kg |
|
壓把移動〈BAR OPENS〉：100°
|
|
把手移動〈HANDLE OPENS〉：60° |
單位：公製
UNIT：m.m.
|
型 號
(MODEL) |
規則(DESCRIPTION) |
|
TT-101-D |
"U"型壓把、法蘭座、直手把
U-BAR,FLANGED BASE,STRAIGHT HANDLE |
|
TT-101-DI |
"U"型壓把、直座、直手把
U-BAR,STRAIGHT BASE,STRAIGHT HANDLE |
|
TT-101-DL |
"U"型壓把、法蘭座、長直手把
"U'-BAR,FLANGED BASE,LONG STRAIGHT
HANDLE |
|
TT-101-E |
長"U"型壓把、法蘭座、直手把
LONG "U'-BAR,FLANGED BASE, STRAIGHT
HANDLE |
|
TT-101-EI |
長"U"型壓把、直座、直手把
LONG "U'-BAR,STRAIGHT BASE,
STRAIGHT HANDLE |
